3, 4, 4.5, and 5 ton 1 Ø non-modular units available in both Heat Pump and Heat Recovery. Connect up to 10 indoor units on a single DVM S Eco system.

• AC Features

  • HIGH PERFORMANCE HEATING


    HIGH PERFORMANCE HEATING

    DVM S Eco Heat Pump and Heat Recovery systems have high heating performance down to  -13°F (-25°C).

  • FLEXIBLE INSTALLATION


    FLEXIBLE INSTALLATION

    Refrigerant piping can enter from the front, rear, bottom, or side of the outdoor unit.

  • ULTIMATE ZONING SOLUTION


    ULTIMATE ZONING SOLUTION

    Heat Recovery systems can heat and cool separate zones simultaneously to provide comfort to a wide range of occupants. Requires use of HR Changer.

  • WIDE VARIETY OF INDOOR UNIT OPTIONS


    WIDE VARIETY OF INDOOR UNIT OPTIONS

    Our indoor units offer superior performance, flexible installation, and ease of operation. These units employ innovative technologies, like our WindFree™* Cooling technology, to optimize comfort in any environment. With over 10 different types of indoor units, ranging from 5,000 to 60,000 Btu/h, there are solutions for almost any application.

  • EXTENDED PIPING LENGTH


    EXTENDED PIPING LENGTH

    DVM S Eco systems offer installation flexibility with maximum piping length up to 492 ft., vertical separation up to 164 ft. between the outdoor unit and lowest indoor unit (when the outdoor unit is above the indoor units), and 131 ft. between the highest and lowest indoor unit (when the outdoor unit is below the indoor units).

  • CONTROL INTEGRATION OPTIONS


    CONTROL INTEGRATION OPTIONS

    A number of control options are available to fit a variety of project needs, from simple local controllers to full central control options. This allows the capability to integrate into any Building Management System (BMS) through BACnet, LonWorks, or Modbus.

  • ADVANCED COMMISSIONING AND SERVICE


    ADVANCED COMMISSIONING AND SERVICE

    DVM S Eco systems are equipped with a removable EEPROM chip on the main circuit board to store startup information, system settings, serial number, and other field programmed data. This allows for ease of startup, commissioning, product registration, and future service work when using Samsung service software (S-Net Pro2).

• Brochures & Literature

• Pairs With

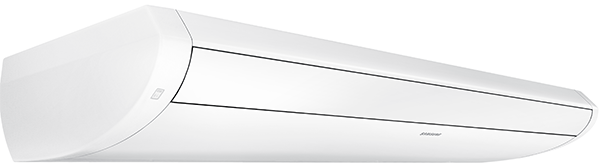

  360 Cassette WindFree™* 4-Way Cassette WindFree™* Mini 4-Way Cassette WindFree™* 1-Way Cassette Duct S Slim Duct High Static Pressure (HSP) Duct WindFree™* 2.0 Max Big Ceiling Under Ceiling Multi-Position Air Handler (MPAH)** Floor Standing (concealed type) Floor Standing (exposed type)

• Controls

  Wi-Fi Adapter DMS 2.5 DMS 2.5 + BACnet Gateway DMS 2.5 + LonWorks Gateway Pulse Input Module (PIM) Modbus Adapter
